Manuels rc
-
.. -
67164-4-OM-EN-R02.pdf- (2,7 Mo) - 67164-4-OM-FR-R02.pdf- (2,9 Mo)
- 67164-4 parts.pdf- (744 KB)
-

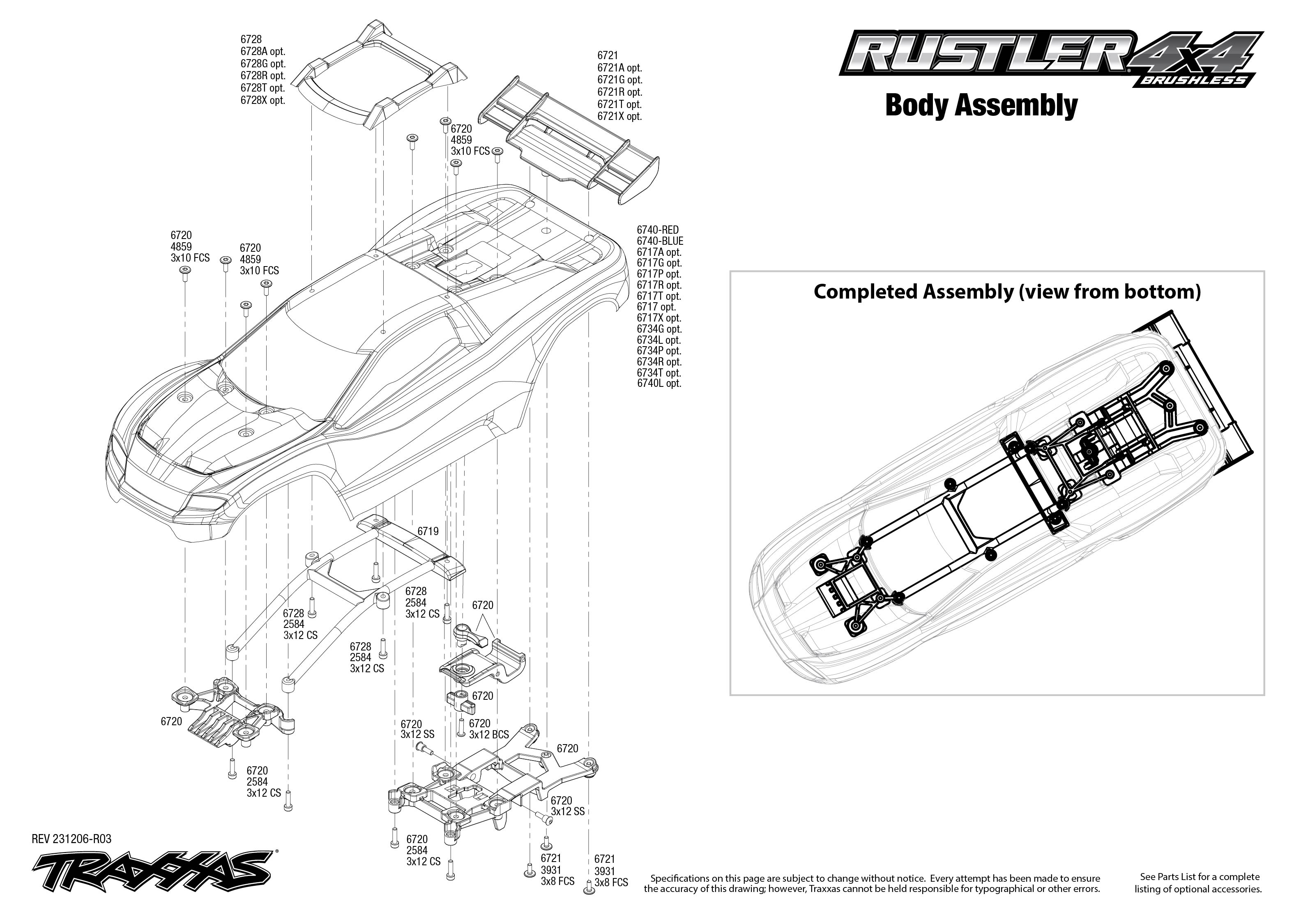

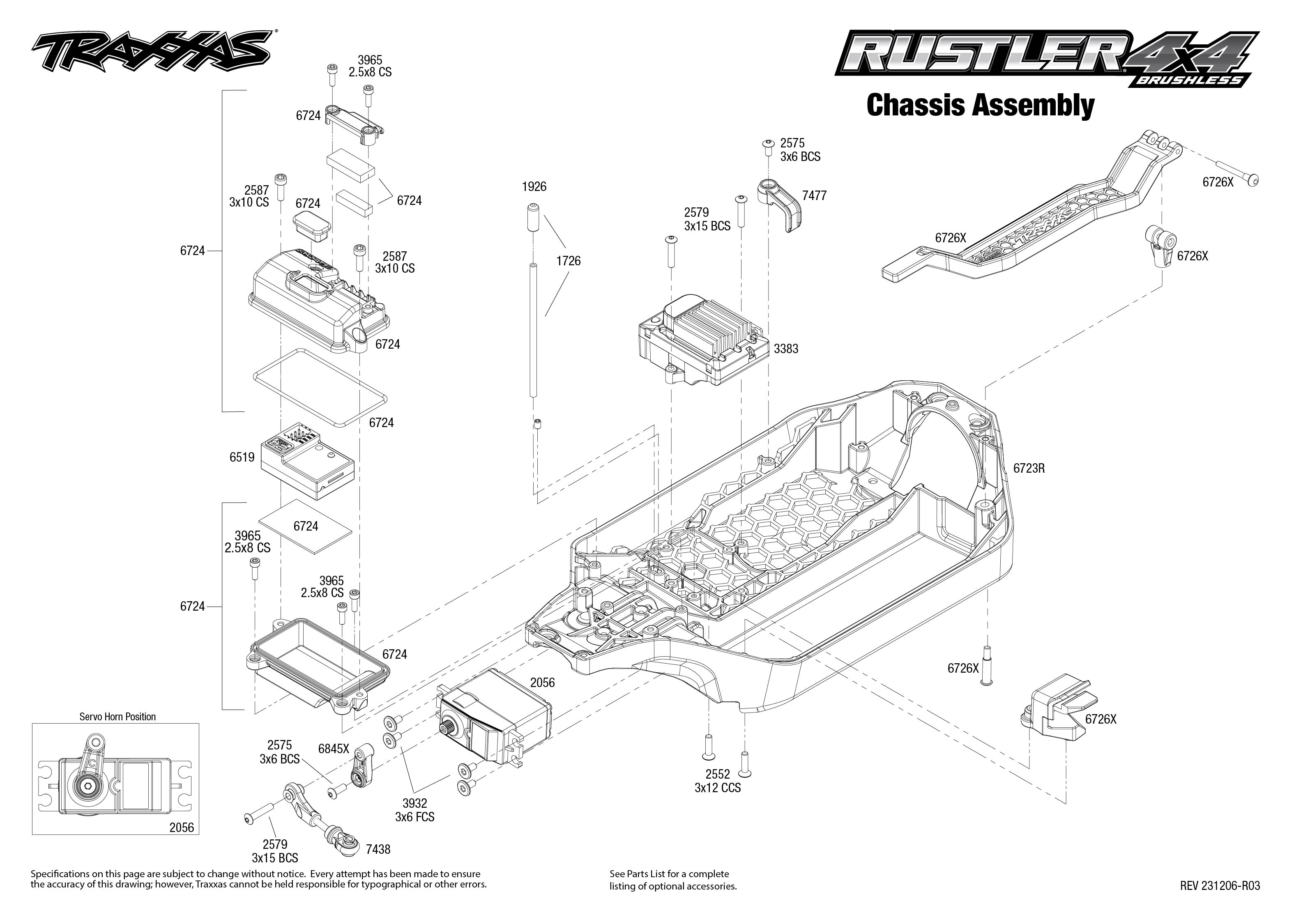

67164-4 TQi explodedviews 231206 67164-4 Body Assembly.jpg- (650 KB) - 67164-4 TQi explodedviews 231206 67164-4 Chassis Assembly.jpg- (574 KB)

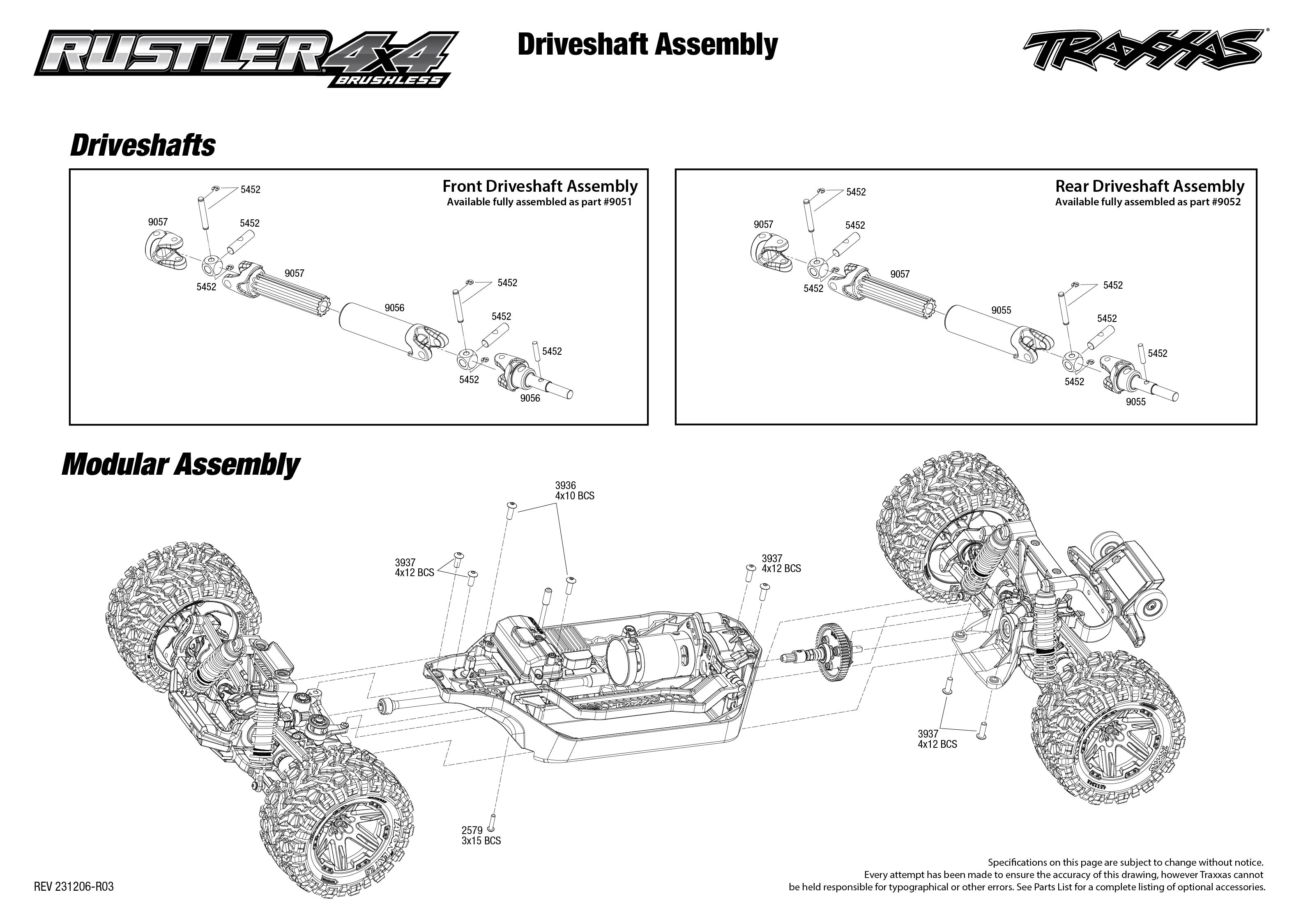

- 67164-4 TQi explodedviews 231206 67164-4 Driveshafts Assembly.jpg- (710 KB)

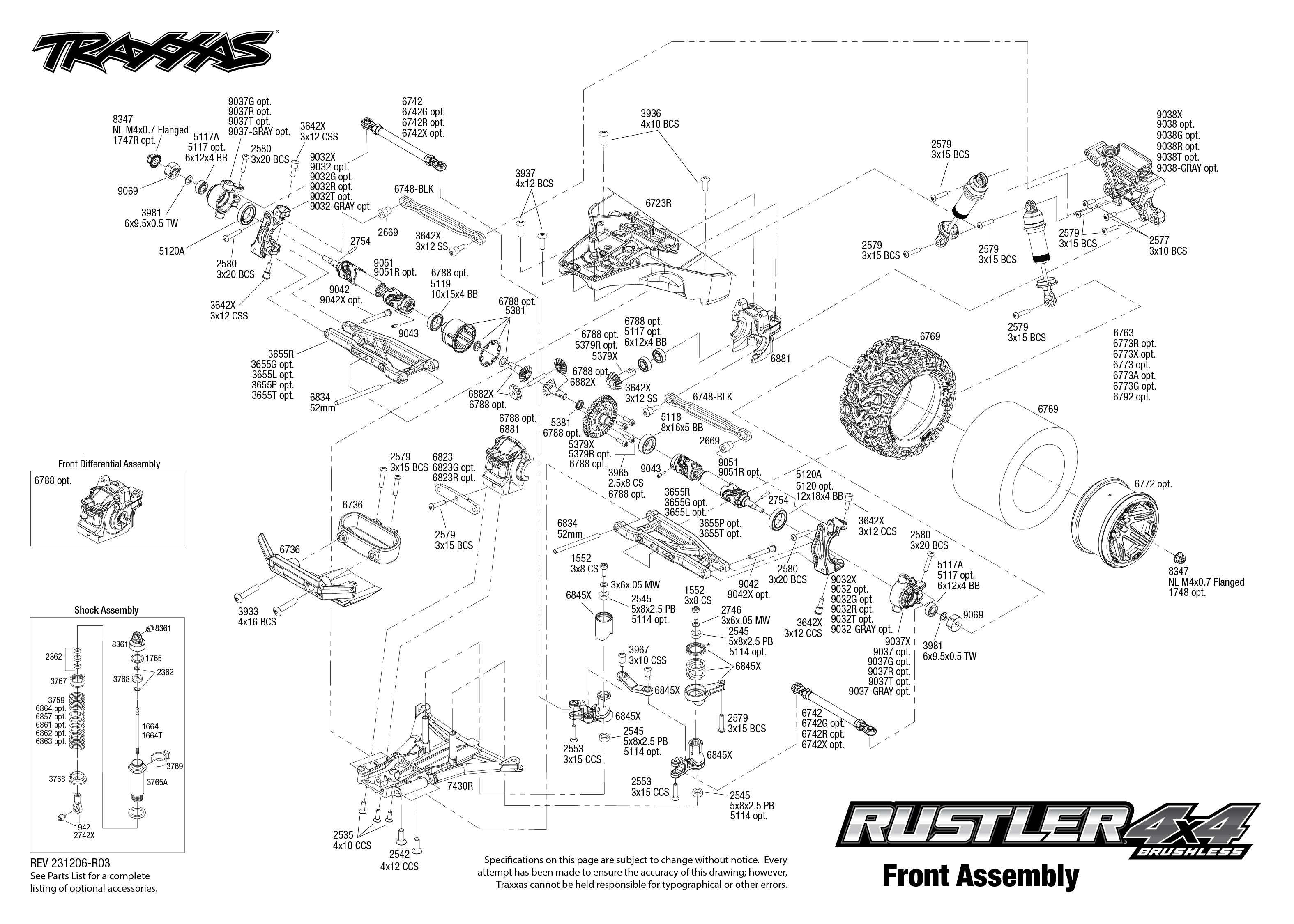

- 67164-4 TQi explodedviews 231206 67164-4 Front Assembly.jpg- (762 KB)

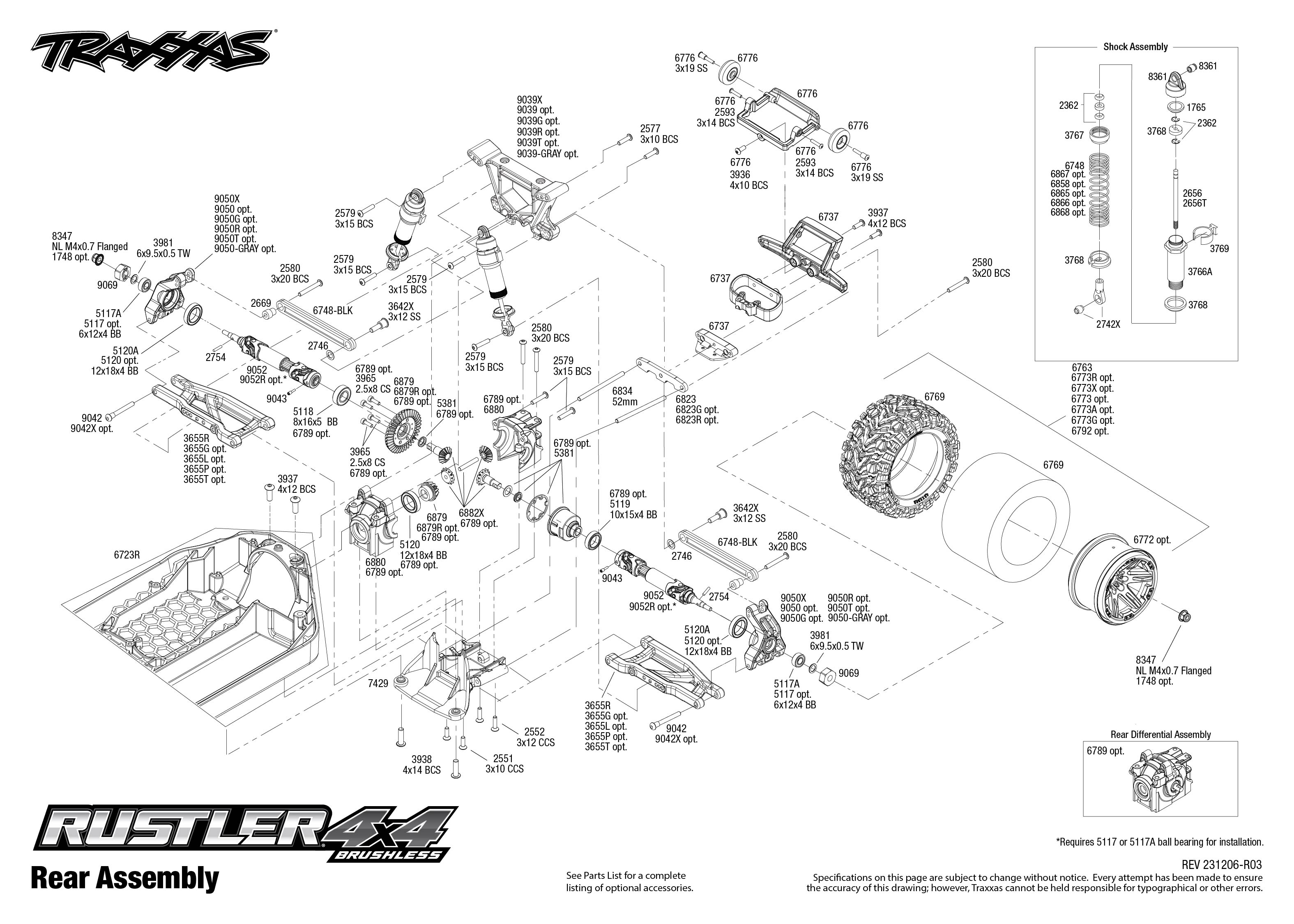

- 67164-4 TQi explodedviews 231206 67164-4 Rear Assembly.jpg- (742 KB)

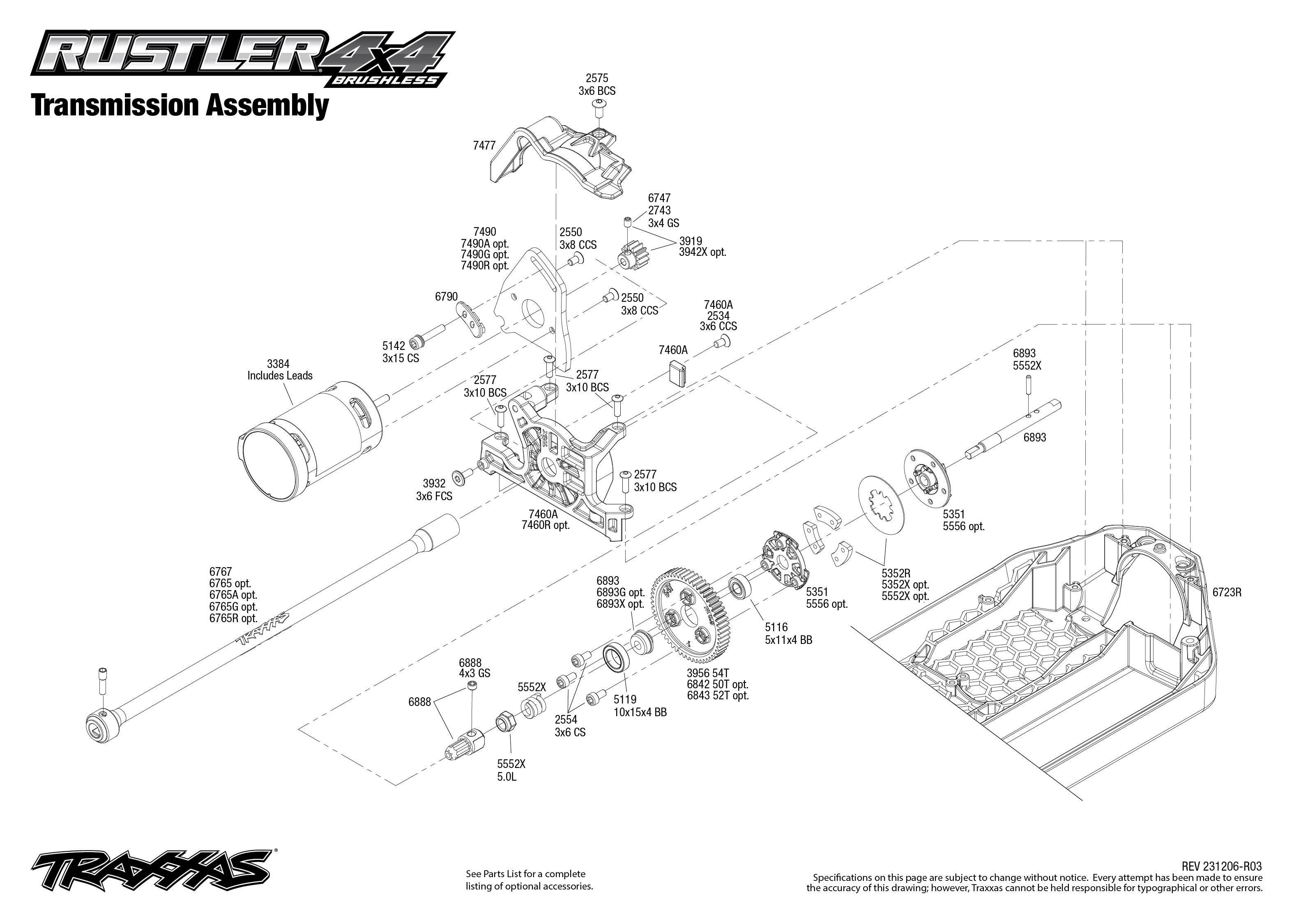

- 67164-4 TQi explodedviews 231206 67164-4 Transmission Assembly.jpg- (503 KB)
